EMC shield clamps for bus modules
with plug-in mounting function
The EMC shield clamp provides strain relief, cable guidance and earthing for decentralised bus modules of numerous manufacturers. The STFZ2 types are used for analogue I/O modules using two actuators / sensors.
Type STFZ|SKL is suitable for:
Bosch Rexroth: IP20 Inline Module
PHOENIX CONTACT: All terminals of the INLINE range. The terminals 1.4 and 2.4 must not be used for signal I/O.
Pilz: All PSSu-Modules with shield terminals 13 and 23
Siemens: All terminals of the ET200s range. Terminals 4 and 8 must not be used for signal I/O.
TURCK: All terminals of the BL20 I/O system.
VIPA SLIO: All terminals of the SLIO range. Terminals 4+8 must not be used for signal I/O.
WAGO: All terminals of the WAGO I/O Systems 750. Terminals 4 and 8 must not be used for signal I/O.
Rockwell Automation / Allen-Bradley: Series 1734
The STFZ I/O Insert Tool can be used for quick and easy mounting of STFZ terminal clamps.
Type STFZ-SP|SKL is suitable for:
Siemens: SIMATIC ET 200SP
Type STFZ-U|SKL is suitable for:
BECKHOFF: EL 3122, ES 3122, ES 9100, ES 9410, KL 1114, KS 2134
Part No.
61430
Specifications
Properties
vibration proof
Advantages and benefits
Large contact area
Shield contact and strain relief separated
The spring design requires no adjustments and will permanently maintain contact to the cable shield
Earthing of signal cables close to the terminal
Strain relief and cable management directly on the bus module
Product types and sizes

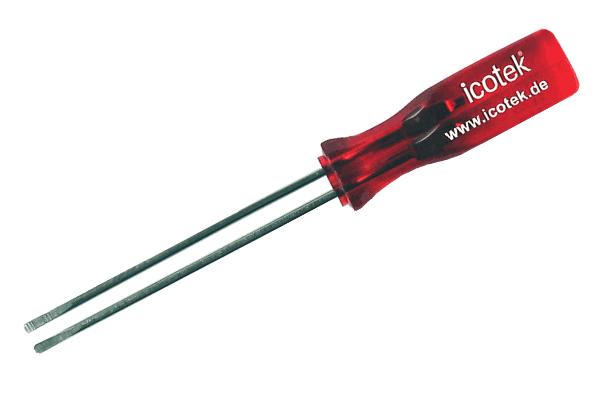

STFZ I/O Insert Tool
Part No.
61430
EAN
Unknown
Package quantity
1
Suitable for I/O modules
Siemens ET200s, Phoenix Contact Inline, RA / Allen-Bradley 1734, VIPA SLIO, TURCK BL20, Bosch Rexroth Inline (IP20), WAGO 750, Pilz PSSu
The EMC shield clamp provides strain relief, cable guidance and earthing for decentralised bus modules of numerous manufacturers. The STFZ2 types are used for analogue I/O modules using two actuators / sensors.
Type STFZ|SKL is suitable for:
Bosch Rexroth: IP20 Inline Module
PHOENIX CONTACT: All terminals of the INLINE range. The terminals 1.4 and 2.4 must not be used for signal I/O.
Pilz: All PSSu-Modules with shield terminals 13 and 23
Siemens: All terminals of the ET200s range. Terminals 4 and 8 must not be used for signal I/O.
TURCK: All terminals of the BL20 I/O system.
VIPA SLIO: All terminals of the SLIO range. Terminals 4+8 must not be used for signal I/O.
WAGO: All terminals of the WAGO I/O Systems 750. Terminals 4 and 8 must not be used for signal I/O.
Rockwell Automation / Allen-Bradley: Series 1734
The STFZ I/O Insert Tool can be used for quick and easy mounting of STFZ terminal clamps.
Type STFZ-SP|SKL is suitable for:
Siemens: SIMATIC ET 200SP
Type STFZ-U|SKL is suitable for:
BECKHOFF: EL 3122, ES 3122, ES 9100, ES 9410, KL 1114, KS 2134
